Description:

Features:

The Perfect Fit

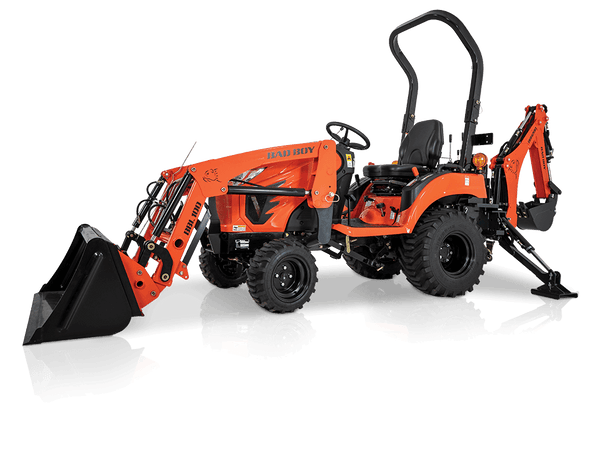

The 1022 can get down and dirty with the best of them. This entry to our subcompact tractor lineup is perfect for small property owners. Get where other tractors can't and help you work with an attitude.

Power and Performance

The clean, Tier 4 Certified quiet and powerful diesel engine boasts 22 horsepower. This tractor offers over 600 pounds of lift capacity, while the hydrostatic power steering makes getting around easy and effortless.

Get Optional Mid-Mount Mower Deck

We're bringing the legendary mower deck strength found on our commercial-grade mowers to the 1022. The easy-to-mount, drive-over deck features a width of 54˝ and cutting height adjustment from 1˝ to 4˝ for a precise mowing performance.

Specifications:

Engine

• Type: 3-cylinder, water-cooled, diesel
• Horsepower: 21.5 HP @ rated RPM
• Displacement: 60.6 in³
• Cylinders: 3
• Fuel Tank: 6.6 gal

Drivetrain

• Transmission: HST (Hydrostatic)
• Speeds: 2-range
• Clutch: Dry single plate
• Brakes: Wet, multi-disc

Hydraulics

• Type: Power-assisted hydrostatic
• Hydraulic Flow: 6.3 gpm (2.1 steering + 4.2 implement)
• 3-Point Hitch: Limited Cat 1
• Rear Remote Valve: Optional (up to 1)
• 3-Point Lift Capacity (24" behind): 679 lbs

Dimensions

• Length: 94.2 in
• Width: 44.5 in
• Height: 86.6 in
• Wheelbase: 53.1 in
• Ground Clearance: 8.3 in
• Weight: 1,433 lbs

PTO

• Type: Independent
• PTO Speed: 540 rpm (rear/mid)
• PTO HP: 15.4

Electrical

• Battery: 12 V, 500 CCA
• Alternator: 12 V, 40 A

Wheels & Tires (Industrial)

• Front: 18x8.50-10
• Rear: 26x12-12
