Description:

Features:

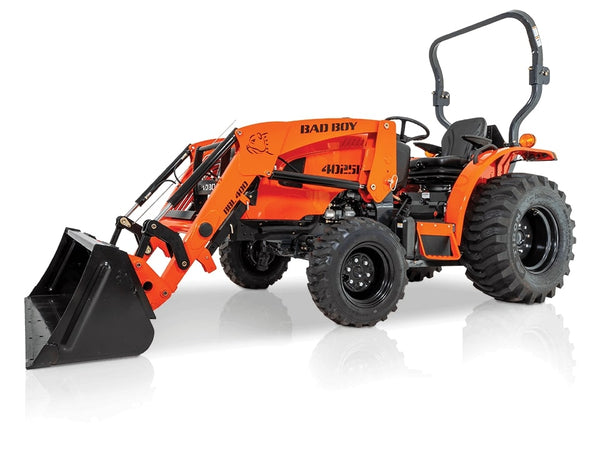

4025

• FEATURING:
• 25 HORSEPOWER
• 2,200 LBS. LOADER LIFT CAPACITY AT PINS
• HYDRO MAX TRANSMISSION
• METAL HOOD & FENDERS
• CAST IRON AXLES
• DUAL HST PEDALS
• 3 RANGE TRANSMISSION
• INDEPENDENT PTO
• POWER STEERING
• SELECTABLE 4WD
• DIFFERENTIAL LOCK
• 6 YEAR POWERTRAIN WARRANTY

Specification:

Engine

• Type: 3 Cylinder, Water-Cooled, Diesel
• Horsepower: 25 HP @ RPM
• Displacement: 104.5 cubic inches
• Number of Cylinders: 3
• Fuel Tank Capacity: 7.1 gallons

Drivetrain

• Transmission: HST (Hydro-Static Transmission)
• Number of Speeds: 3 Range
• Clutch: No
• Brakes: Wet, Multi-Disc

Hydraulics

• Type: Hydro-Static Power Steering
• Total Hydraulic Flow: 11.5 (4 + 7.5) GPM (Power Steering + Implement)
• 3-Point Hitch: CAT 1
• 3-Point Hitch Lift Capacity: 1,100 lbs @ 24" behind lift point @ ball ends

Dimensions

• Overall Length: 134.88 inches
• Overall Width: 56.7 inches
• Overall Height: 104.06 inches
• Wheelbase: 65.7 inches
• Minimum Ground Clearance: 13.1 inches
• Weight: 2,970 lbs

PTO (Power Take-Off)

• Type: Independent
• Rear (Mid) PTO Speed: 540 RPM
• PTO Horsepower: 19.1 HP

Electrical

• Battery: 12 V, 540 CCA
• Alternator: 12 V, 50 A

Wheels & Tires

• Front Tires: 25x8.50-14
• Rear Tires: 15-19.5

Loader (Model BBL400)

• Standard Bucket Size: 62 inches
• Maximum Lift Height: 104 inches
• Dig Depth: 1.8 inches
• Lift Capacity to Full Height at Pivot Pin: 2,200 lbs
• Breakout Force: 3,660 lbs
• Shipping Weight: 1,007 lbs

Backhoe (Model BBH400)

• Standard Bucket Size: 16 inches
• Type: Subframe-Mounted, Quick Attach
• Maximum Dig Depth: 92.2 inches
• Dig Force (Bucket): 4,380 lbs
• Shipping Weight: 1,270 lbs
