Description:

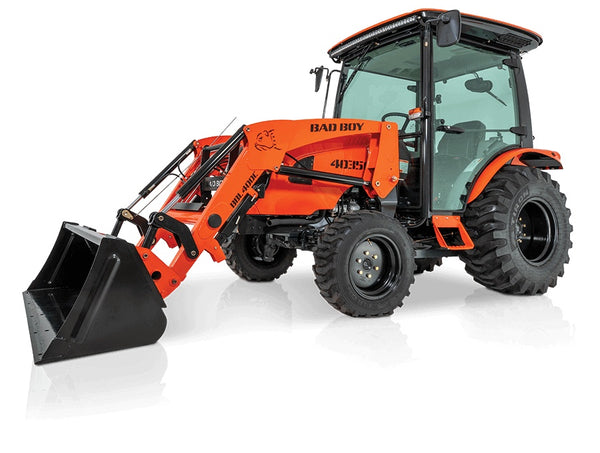

The Bad Boy Mowers BB4035HI Mid-Size Tractor is a popular model in the Bad Boy Mowers lineup, known for its reliability, power, and ease of use.

Specifications:

Engine

• Type: Diesel
• Cylinders: 3
• Horsepower: 35 HP
• Displacement: 104.5 in³
• Fuel tank capacity: 7.1 gal

Transmission

• Type: Hydrostatic
• Number of speeds: 3
• Range: Not specified
• Clutch: No

Drivetrain

• Brakes: Wet, multi-disc
• Hydraulic flow rate: 12.6 gal/min (4.4 gal/min for power steering + 8.2 gal/min for implements)

Hydraulics

• Type: Hydrostatic power steering
• Total hydraulic flow rate: 12.6 gal/min (4.4 gal/min for power steering + 8.2 gal/min for implements)
• 3-point hitch lift capacity @ 24" behind lift point @ ball ends: 1,100 lbs

Dimensions

• Overall length: 134.88"
• Overall width: 56.7" (4035H) or 55.6" (4035CH)
• Overall height: 104.06"
• Wheelbase: 65.7"
• Minimum ground clearance: 13.1"

Weight

• Gross weight: 3,164 lbs (4035H) or 3,551 lbs (4035CH)

PTO

• Type: Independent rear (mid) PTO
• Speed: 540 RPM
• PTO horsepower: 29.5 HP

Electrical

• Battery voltage and cold cranking amps: 12V, 540 CCA
• Alternator output voltage and amperage: 12V, 50A

Wheels and Tires

• Front tire size: 28x8.50-15
• Rear tire size: 43x16.00-20

Loader

• Model BBL400
• Standard bucket size: 62 in³
• Maximum lift height: 104 in
• Dig depth: 1.8 in
• Lift capacity to full height at pivot pin: 2,200 lbs
• Breakout force: 3,660 lbs
• Shipping weight: 1,007 lbs

Backhoe

• Model BBH400
• Standard bucket size: 16 in³
• Type: Subframe-mounted, quick attach
• Maximum dig depth: 92.2 in
• Dig force bucket capacity: 4,380 lbs
• Shipping weight: 1,270 lbs
