Description:

55 Horsepower & 4-Wheel Drive

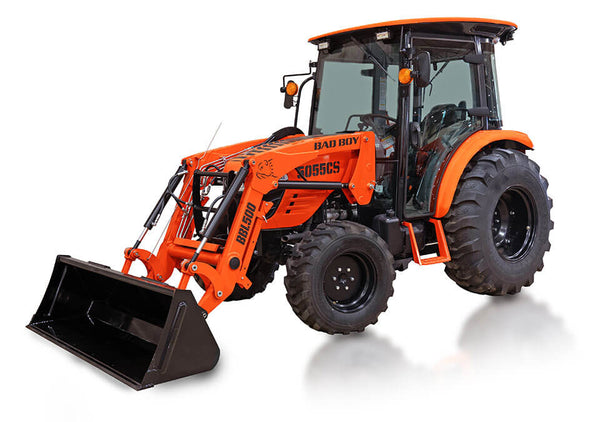

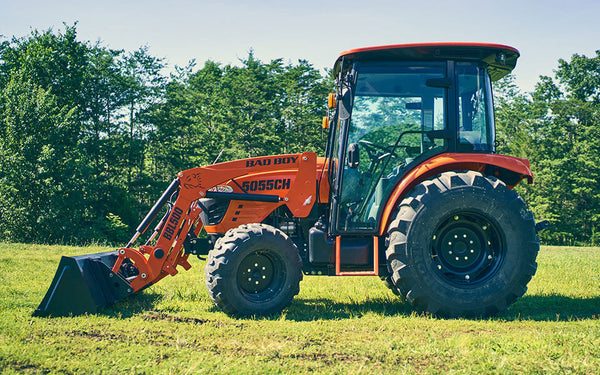

The Bad Boy 5055 Series Tractor is the big dog, the largest tractor in our Bad Boy line-up. Powered by a 55-horsepower engine with a loader lift capacity of 2700 lbs., this tractor is built to handle the toughest jobs. If pulling power is a priority, this Bad Boy features differential lock, automatically equalizing power to both rear wheels for an added boost. Still want more? Use our selectable 4-wheel drive to engage the front wheels and maximize traction and pulling power. If you want top-of-the-line performance, strength and lifting power, the 5055 is the Bad Boy for you.

Implements That Make Work Easier

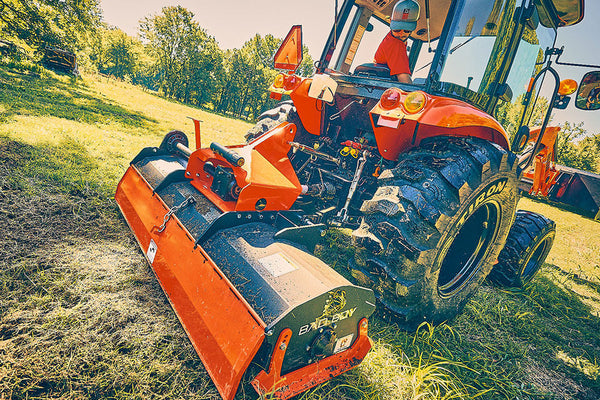

The Bad Boy 5055 Tractor’s tough three-point hitch and front loader quick attach and latch implements are built to our own industry-leading standards. Made from heavy-gauge, welded and fabricated steel, they’re more than ready to pull their weight around your property. The Bad Boy implement line-up includes: Box Blades, Land Graders, Rotary Tillers, Disc Harrows, Forks and Hitches, Front Grapples, Grader Blades, Landscape Rakes and Rotary Brush Cutters. They’re built for a lifetime of work around the field and farm and make getting the job done quicker and easier than ever before, especially with 55 horsepower under the hood.

Features:

• 55 Horsepower
• 2,700 lbs. Loader Lift Capacity At Pins
• Hydro Max or Shuttle Shift Transmission Option
• Optional Climate-Controlled Cab with Leather, Heated Seat
• Power Steering
• Easy to Adjust Pin Style Stabilizer
• Cruise Control
• 4WD

Specifications:

Dimensions

• Overall Length (3P): 127.4 in
• Overall Width: 64.9 in
• Height to Top of ROPS: 98.4 in
• Wheelbase: 71.1 in
• Min. Ground Clearance: 15.5 in
• Weight: 3,836 lb

PTO

• Type: 540 / 540E
• PTO Speeds (RPM): 584, 791
• Max PTO Power: 44 HP

Hydraulics

• Maximum Total Flow: 15.7 gpm
• Implement Pump Capacity: 10.7 gpm
• Steering Pump Capacity: 5 gpm
• 3-Point Hitch Category: Cat. 1
• Hitch Lift Capacity: 3,306 lb
• Lift Capacity @ 24 in Behind Link Ends: 2,425 lb

Engine

• Model: A2300T3-UTR_4
• Fuel System: Water-cooled diesel
• Displacement: 139.5 cu in (≈2.3 L)
• Cylinders: 4
• Rated Engine Power: 55 HP
• Rated Speed: 2,600 RPM
• Aftertreatment: DPF / DOC

Transmission

• Type: Hydrostatic Transmission (HST)
• Gears / Ranges: 4 ranges
